IPM6220A Advanced Triple PWM and Dual Linear Power Controller

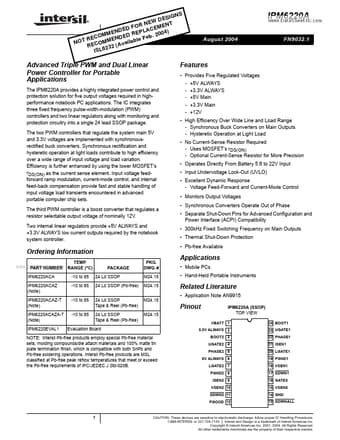

NS ES I G D W NT R NE D F O LA C E M E E D MEN ED REP b. 2004) COMData E R Sheet le Fe E ND NOT ECOMM (Availab R 232 I S L6 ® IPM6220A August 2004 FN9032.1 Advanced Triple PWM and Dual Linear Power Controller for Portable Applications The IPM6220A provides a highly integrated power control and protection solution for five output voltages required in highperformance notebook PC applications. The IC integrates three fixed frequency pulse-width-modulation (PWM) controllers and two linear regulato.

IPM6220A Features

* Provides Five Regulated Voltages - +5V ALWAYS - +3.3V ALWAYS - +5V Main - +3.3V Main - +12V

* High Efficiency Over Wide Line and Load Range - Synchronous Buck Converters on Main Outputs - Hysteretic Operation at Light Load

* No Current-Sense Resistor Required - Uses MOSFET’

IPM6220A Datasheet (560.80 KB)

IPM6220A Datasheet Preview — Preview of IPM6220A PDF

Datasheet Details

Part number:

IPM6220A

Manufacturer:

Intersil Corporation

File Size:

560.80 KB

Description:

Advanced triple pwm and dual linear power controller.
