IPM6210A Datasheet - Intersil Corporation

IPM6210A Precision Dual PWM Controller And Linear Regulator

IPM6210A TM Data Sheet August 2001 File Number 9033.1 Precision Dual PWM Controller And Linear Regulator for Notebook CPUs The IPM6210A is a highly integrated power controller which provides a complete power management solution for mobile CPUs. The IC integrates two PWM controllers and a linear regulator as well as monitoring and protection circuitry into a single 28-lead plastic SSOP package. The two PWM controllers regulate the microprocessor core and I/O voltages with synchronous-rectifi.

IPM6210A Features

* Provides 3 Regulated Voltages - 0.9V to 2.0V Microprocessor Core (SpeedStepTM Enabled) - 1.5V Microprocessor I/O - 2.5V Microprocessor Clock Generator

* High Efficiency Over Wide Load Range

* Not Dissipative Current-Sense Scheme - Uses MOSFET’s rDS(ON) - Optional Current-Se

IPM6210A Datasheet (700.47 KB)

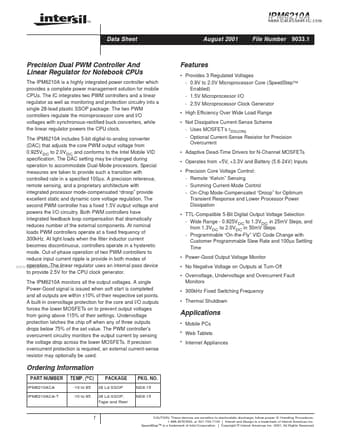

Preview of IPM6210A PDF

Datasheet Details

Part number:

IPM6210A

Manufacturer:

Intersil Corporation

File Size:

700.47 KB

Description:

Precision dual pwm controller and linear regulator.
