IPM12C0A0S04FA, IPM12C0A0R04FA Datasheet - Delta Electronics

IPM12C0A0S04FA Integrated Point-of-Load Power Modules

Over-Current Protection To provide protection in an output over load fault condition, the unit is equipped with inte.

IPM12C0A0S04FA Features

* High efficiency: 91% @ 12Vin, 5V/4A out Small size and low profile: 17.8 x 15.0 x 7.8mm (0.70”x 0.59” x 0.31”) Output voltage adjustment: 0.9V~5V Monotonic startup into normal and pre-biased loads Input UVLO, output OCP Remote ON/OFF(Positive) Output short circuit protection Fixed frequency operatio

IPM12C0A0R04FA_DeltaElectronics.pdf

This datasheet PDF includes multiple part numbers: IPM12C0A0S04FA, IPM12C0A0R04FA. Please refer to the document for exact specifications by model.

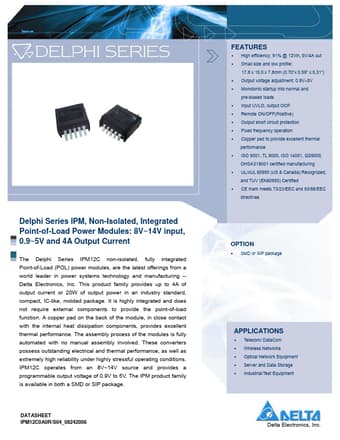

IPM12C0A0S04FA Datasheet Preview Page 2 IPM12C0A0S04FA Datasheet Preview Page 3

Datasheet Details

Part number:

IPM12C0A0S04FA, IPM12C0A0R04FA

Manufacturer:

Delta Electronics

File Size:

713.01 KB

Description:

Integrated point-of-load power modules.

Note:

This datasheet PDF includes multiple part numbers: IPM12C0A0S04FA, IPM12C0A0R04FA.
Please refer to the document for exact specifications by model.
