IPM24S0C0S03FA, IPM24S0C0R03FA Datasheet - Delta Electronics

IPM24S0C0S03FA Integrated Point-of-Load Power Modules

Over-Current Protection To provide protection in an output over load fault condition, the unit is equipped with internal over-current protection. When the over-current protection is triggered, the unit enters hiccup mode. The units operate normally once the fault condition is removed. Output Volta.

IPM24S0C0S03FA Features

* High efficiency: 95.0% @ 20Vin, 15.0V/3A Small size and low profile: 17.8x15.0x7.8mm (0.70”x0.59”x0.31”) Output voltage adjustment: 8.0V~15.0V Monotonic startup into normal and pre-biased loads Input UVLO, output OCP Remote ON/OFF Output short circuit protection Fixed frequency operation Copper pad

IPM24S0C0R03FA_DeltaElectronics.pdf

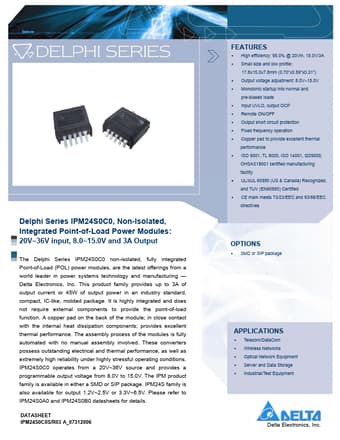

IPM24S0C0S03FA Datasheet Preview — This datasheet PDF includes multiple part numbers: IPM24S0C0S03FA, IPM24S0C0R03FA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IPM24S0C0S03FA, IPM24S0C0R03FA

Manufacturer:

Delta Electronics

File Size:

666.56 KB

Description:

Integrated point-of-load power modules.

Note:

This datasheet PDF includes multiple part numbers: IPM24S0C0S03FA, IPM24S0C0R03FA.
Please refer to the document for exact specifications by model.
