SLG4AX42396 - OSFP Low-Speed Host Controller

Product Overview

Dialog Semiconductor

Datasheet Details

Part number	SLG4AX42396
Manufacturer	Dialog Semiconductor
File Size	579.42 KB
Description	OSFP Low-Speed Host Controller
Datasheet	SLG4AX42396 Datasheet

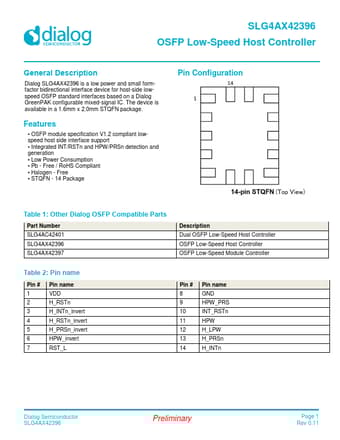

Additional preview pages of the SLG4AX42396 datasheet.

Product details

Description

Dialog SLG4AX42396 is a low power and small formfactor bidirectional interface device for host-side lowspeed OSFP standard interfaces based on a Dialog GreenPAK configurable mixed-signal IC.

Features

OSFP module specification V1.2 compliant lowspeed host side interface support.
Integrated INT/RSTn and HPW/PRSn detection and generation.
Low Power Consumption.
Pb - Free / RoHS Compliant.
Halogen - Free.
STQFN - 14 Package Pin Configuration Table 1: Other Dialog OSFP Compatible Parts Part Number SLG4AC42401 SLG4AX42396 SLG4AX42397.
