DFPIC1655X

High Performance Configurable 8-bit RISC Microcontroller

DFPIC1655X Features

* configurable hardware stack, and multiple internal and external interrupt sources. The separate instruction and data buses allow a 14 bit wide instruction word with the separate 8 -bit wide data. The DFPIC1655X typically achieve a 2:1 code compression and a 8:1 speed improvement over other 8-bit mi

DFPIC1655X General Description

PIN clk clkwdt por mclr prgdata[13:0] ramdati[7:0] intr t0cki portax[7:0] docddatai prgaddr[15:0] ramdatao[7:0] ramaddr[8:0] ramwe ramoe sleep portxo[7:0] trisx[7:0] docddatao docdclk prgdatao[13:0] prgwe TYPE input input input input input input input input input input DESCRIPTION Global clock Wat.

DFPIC1655X Datasheet (288.88 KB)

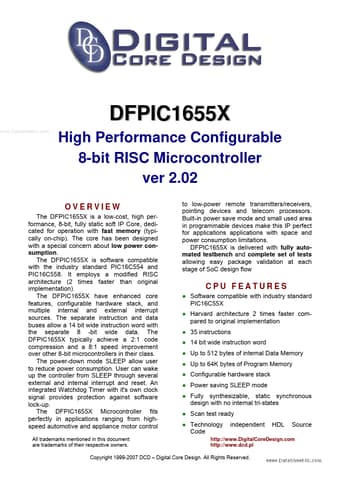

Preview of DFPIC1655X PDF

Datasheet Details

Part number:

DFPIC1655X

Manufacturer:

Digital Core Design

File Size:

288.88 KB

Description:

High performance configurable 8-bit risc microcontroller.
DFPIC1655X www.DataSheet4U.com High Performance Configurable 8-bit RISC Microcontroller ver 2.02 OVERVIEW to low-power remote transmitters/receivers,.
