DFPIC165X

High Performance 8-bit RISC Microcontroller

DFPIC165X Features

* and configurable hardware stack. The separate instruction and data buses allow a 12 bit wide instruction word with the separate 8 -bit wide data. The DFPIC165X typically achieve a 2:1 code compression and a 8:1 speed improvement over other 8-bit microcontrollers in its class. The Core has 24 I/O lin

DFPIC165X General Description

PIN clk clkwdt por mclr prgdata[11:0] ramdati[7:0] t0cki portai[7:0] portbi[7:0] www.DataSheet4U.com portci[7:0] prgdata[11:0] ramdati[7:0] prgaddr[11:0] ramdatao[7:0] ramaddr[7:0] ramwe ramoe sleep portao[7:0] portbo[7:0] portco[7:0] trisa[7:0] trisb[7:0] trisc[7:0] BLOCK DIAGRAM clk por TYPE inp.

DFPIC165X Datasheet (280.07 KB)

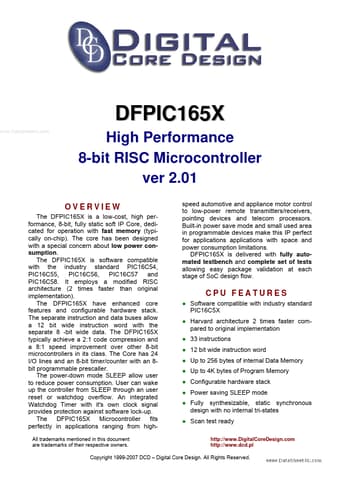

Preview of DFPIC165X PDF

Datasheet Details

Part number:

DFPIC165X

Manufacturer:

Digital Core Design

File Size:

280.07 KB

Description:

High performance 8-bit risc microcontroller.
DFPIC165X www.DataSheet4U.com High Performance 8-bit RISC Microcontroller ver 2.01 OVERVIEW speed automotive and appliance motor control to low-power.
