DFPADD

Floating Point Pipelined Adder Unit

DFPADD Features

* Full IEEE-754 compliance Single precision real format support Simple interface No programming required 5 levels pipeline Full accuracy and precision Results available at every clock Overflow, underflow and invalid operation flags Fully configurab

DFPADD General Description

PIN clk rst en adatai[31:0] bdatai[31:0] datao[31:0] ofo ufo ifo TYPE Input Input Input Input Input DESCRIPTION Global system clock Global system reset Enable computing A data bus input B data bus input Output Data bus output Output Overflow flag Output Underflow flag Output Invalid result flag Al.

DFPADD Datasheet (151.46 KB)

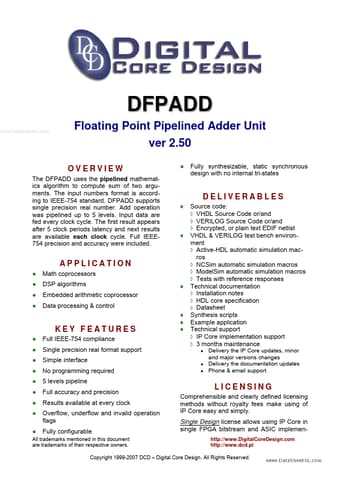

Preview of DFPADD PDF

Datasheet Details

Part number:

DFPADD

Manufacturer:

Digital Core Design

File Size:

151.46 KB

Description:

Floating point pipelined adder unit.
DFPADD www.DataSheet4U.com Floating Point Pipelined Adder Unit ver 2.50 OVERVIEW
* Fully synthesizable, static synchronous design with no interna.
