DTL55N06 N-Channel MOSFET

DTL55N06 Description

N-Channel 60 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) 60 RDS(on) () 0.0093 at VGS = 10 V 0.0122 at VGS = 4.5 V ID (A)a 55 50 .

DTL55N06 Features

* 175 °C Junction Temperature
* TrenchFET® Power MOSFET
* Material categorization: DTL55N06 www. din-tek. jp TO-251 D G GDS Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) Parameter Symbol Gate-Source Voltage VGS Continuous

📥 Download Datasheet

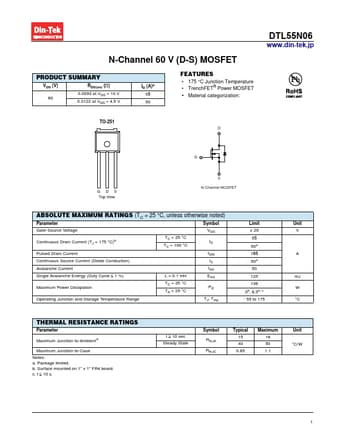

Preview of DTL55N06 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTL55N06
Manufacturer
Din-Tek
File Size
339.69 KB
Datasheet
DTL55N06-DinTek.pdf
Description
N-Channel MOSFET
