DTP7N70SJ, DTP7N70SJ-Din N-Channel Super Junction Power MOSFET

DTP7N70SJ Description

DTP7N70SJ/DTP7N70FSJ/DTU7N70SJ/DTL7N70SJ ZZZGLQWHNMS /$IBOOFM707 %4 4VQFS+VODUJPOPower MOSFET PRODUCT SUMMARY VDS (V) at TJ max.700 RD.

DTP7N70SJ Features

* Low figure-of-merit (FOM) Ron x Qg
* Low input capacitance (Ciss)
* Reduced switching and conduction losses
* Ultra low gate charge (Qg)

DTP7N70SJ Applications

* Server and telecom power supplies
* Switch mode power supplies (SMPS)
* Power factor correction power supplies (PFC)
* Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
* Industrial TO-252 TO-251 D GD S Top View GDS Top View GDS

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DTP7N70SJ, DTP7N70SJ-Din. Please refer to the document for exact specifications by model.

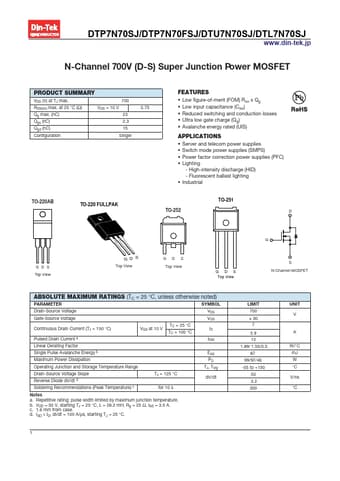

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTP7N70SJ, DTP7N70SJ-Din
Manufacturer
Din-Tek
File Size
476.34 KB
Datasheet
DTP7N70SJ-Din-Tek.pdf
Description
N-Channel Super Junction Power MOSFET
Note
This datasheet PDF includes multiple part numbers: DTP7N70SJ, DTP7N70SJ-Din.
Please refer to the document for exact specifications by model.
