* DT-Trench Power MOSFET
* 100 % Rg and UIS Tested APPLICATIONS
* DC/DC Converter

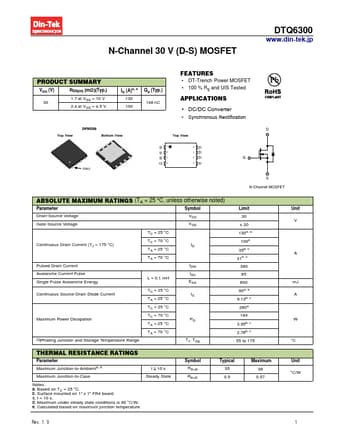

* Synchronous Rectification DFN5X6 D Top View Bottom View Top View PIN1 1 8 2 7 3 6 4 5 G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted)
DTQ6300
Din-Tek
3.83 MB
N-channel mosfet.
N-Channel 30 V (D-S) MOSFET
DTQ6300
www.din-tek.jp
PRODUCT SUMMARY
VDS (V)
RDS(on) (mΩ )(Typ.)
30
1.7 at VGS = 10 V
2.4 at VGS = 4.5 V
ID (A)a.
