* Halogen-free
* TrenchFET® Power MOSFET
* 100 % Rg Tested APPLICATIONS

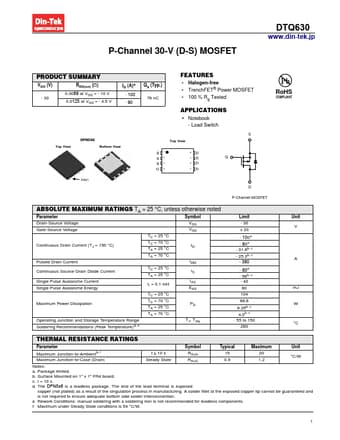

* Notebook - Load Switch Top View S 18 27 36 45 G RoHS COMPLIANT PIN1 D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltag
DTQ6301
Din-Tek
460.34 KB
P-channel mosfet.
P-Channel 30-V (D-S) MOSFET
DTQ630
www.din-tek.jp
PRODUCT SUMMARY
VDS (V) - 30
RDS(on) (Ω) 0.0089 at VGS = - 10 V 0.0125 at VGS = - 4.5 V
ID .
