* DT-Trench Power MOSFET
* 100 % Rg and UIS Tested APPLICATIONS
* OR-ing
* Server Top View DFN5X6 Bottom View PIN1 Top View 1 8 2 7 3 6 4 5 D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Sou

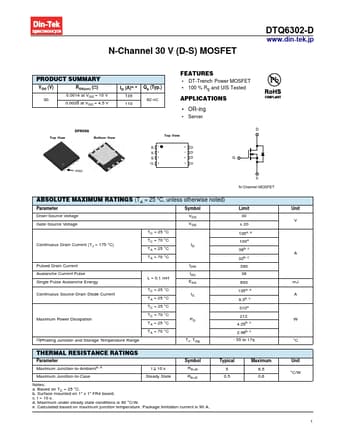

DTQ6302-D Datasheet (376.18 KB)
DTQ6302-D
Din-Tek
376.18 KB
N-channel mosfet.
N-Channel 30 V (D-S) MOSFET
DTQ6302-D
www.din-tek.jp
PRODUCT SUMMARY
VDS (V) 30
RDS(on) () 0.0014 at VGS = 10 V 0.0020 at VGS = 4.5 V
ID (A)a, e.
