* D TrenchFETr Power MOSFET D 175_C Maximum Junction Temperature D 100% Rg Tested D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25_C UNLESS OTHERWISE NOTED) Parameter Symbol Limit Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 175_C)b Pulsed Drain Current Continu
DTU35N06 Datasheet (365.56 KB)
DTU35N06
Din-Tek
365.56 KB
N-channel mosfet.

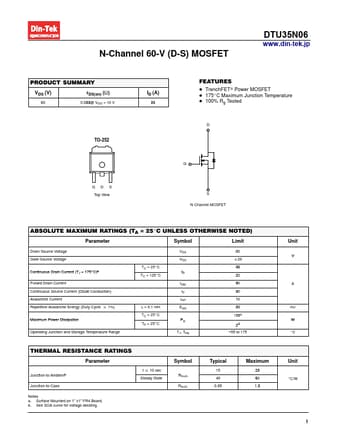

N-Channel 60-V (D-S) MOSFET
DTU35N06
www.din-tek.jp
PRODUCT SUMMARY
VDS (V)
60
rDS(on) (W)
0.033@ VGS = 10 V
TO-252
GDS Top View
ID (A)
35
FEA.
