AP1702

3-PIN MICROPROCESSOR RESET

AP1702 Features

* Precision Monitoring of +2.5V, +3V, +3.3V, and +5V Power-Supply Voltages Fully Specified Over Temperature Available in three Output Configurations Push-Pull RESET Low Output (AP170

AP1702 General Description

The AP1701/2/3/4 are used for microprocessor (µP) supervisory circuits to monitor the power supplies in µP and digital systems. They provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with +5V, +3.3V, +3.0V powered circuits. These circuits.

AP1702 Datasheet (108.23 KB)

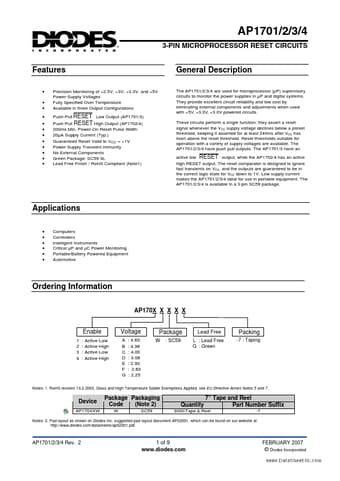

Preview of AP1702 PDF

Datasheet Details

Part number:

AP1702

Manufacturer:

DIODES ↗ Incorporated

File Size:

108.23 KB

Description:

3-pin microprocessor reset.
