DDTC115EUA, DDTC123EUA - NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Name: DDTC115EUA
SKU: DDTC115EUA-1296216

Diodes

The DDTC115EUA by Diodes is a NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR. Below is the official datasheet preview.

Datasheet Details

Part number	DDTC115EUA, DDTC123EUA
Manufacturer	DIODES
File Size	360.81 KB
Description	NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Datasheet	DDTC123EUA-Diodes.pdf
Note	This datasheet PDF includes multiple part numbers: DDTC115EUA, DDTC123EUA. Please refer to the document for exact specifications by model.

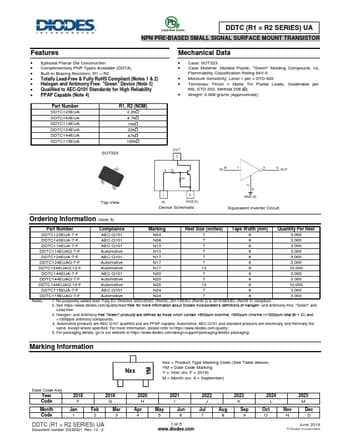

Additional preview pages of the DDTC115EUA datasheet.

Epitaxial Planar Die Construction.
Complementary PNP Types Available (DDTA).
Built-In Biasing Resistors, R1 = R2.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. "Green" Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
PPAP Capable (Note 4) Mechanical Data.
Case: SOT323.
Case Material: Molded Plastic, "Green" Molding Compound. UL Flammability Classification Rating 94V-0.
Moisture Sensitiv.
