DMN4009LK3 - New Generation MOSFET

Diodes

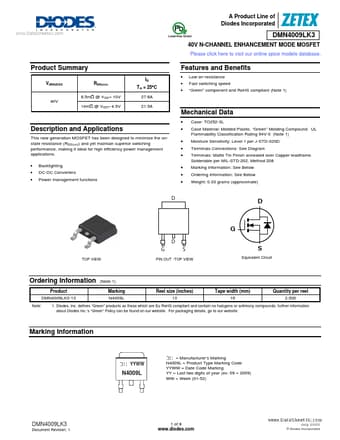

DMN4009LK3 Datasheet Preview — Preview of DMN4009LK3 PDF

Datasheet Details

Part number	DMN4009LK3
Manufacturer	DIODES ↗
File Size	695.02 KB
Description	New Generation MOSFET
Datasheet	DMN4009LK3_Diodes.pdf

DMN4009LK3 Product details

Description

and Applications This new generation MOSFET has been designed to minimize the onstate resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Backlighting DC-DC Converters Power management functions D D G D G TOP VIEW S S Equivalent Circuit PIN OUT -TOP VIEW Ordering Information Product DMN4009LK3-13 Note: (

Features

Low on-resistance Fast switching speed “Green” component and RoHS compliant (Note 1) Mechanical Data.
Case: TO252-3L Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 (Note 1) Moisture Sensitivity: Level 1 per J-STD-020D Terminals Connections: See Diagram Terminals: Matte Tin Finish annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 Marking Information: See Below Ordering Information:.
