DMN4026SK3 Datasheet, Mosfet, INCHANGE

DMN4026SK3 Features

  • Mosfet
  • Drain Current
      –ID= 28A@ TC=25℃
  • Drain Source Voltage- : VDSS= 40V(Min)
  • Static Drain-Source On-Resistance : RDS(on) = 24mΩ(Max)
  • 100% av

PDF File Details

Part number:

DMN4026SK3

Manufacturer:

INCHANGE

File Size:

261.46kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

  • Designed for use in switch mode power supplies and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL

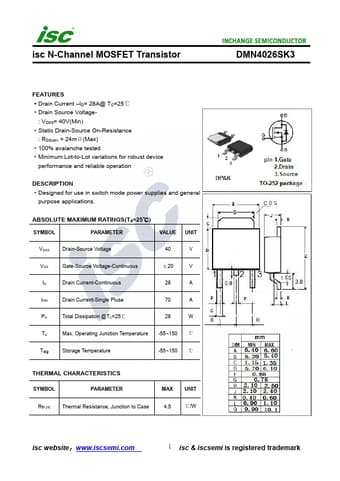

  • Datasheet Preview: DMN4026SK3 📥 Download PDF (261.46kb)
    Page 2 of DMN4026SK3

    DMN4026SK3 Application

    • Applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 40 V
