DMN4010LK3 - N-Channel MOSFET

INCHANGE

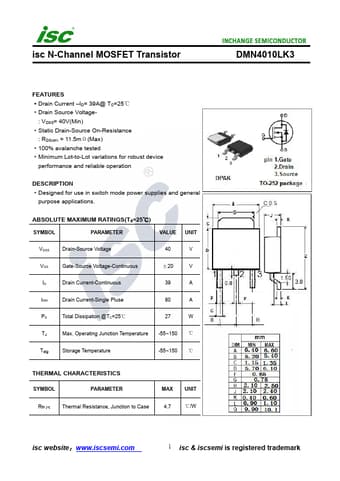

DMN4010LK3 Datasheet Preview — Preview of DMN4010LK3 PDF

Datasheet Details

Part number	DMN4010LK3
Manufacturer	INCHANGE
File Size	261.39 KB
Description	N-Channel MOSFET
Datasheet	DMN4010LK3-INCHANGE.pdf

DMN4010LK3 Product details

Description

Designed for use in switch mode power supplies and general purpose applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 40 V ±20 V ID Drain Current-Continuous 39 A IDM Drain Current-Single Pluse 80 A PD Total Dissipation @TC=25℃ 27 W TJ Max.Operating Junction Temperature -55~150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER MAX UNIT Rth j-c Ther

Features

Drain Current.
ID= 39A@ TC=25℃.
Drain Source Voltage- : VDSS= 40V(Min).
Static Drain-Source On-Resistance : RDS(on) = 11.5mΩ(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
