DMP2100UCB9, P-Channel MOSFET

NEW PRODUCT DMP2100UCB9 DUAL P-CHANNEL ENHANCEMENT MODE MOSFET Product Summary (Typ.@ VGS = -4.5V, TA = +25°C) VDSS -20V RDS(on) 80mΩ Qg 3.3nC .
This new generation MOSFET is designed to minimize the on-state resistance (RD1D2(ON)) and yet maintain superior switching performance, making it idea.

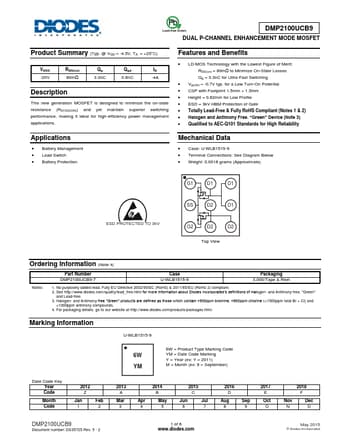

datasheet Preview Page 1 from Datasheet4u.com

DMP2100UCB9-Diodes.pdf

DMP2100UCB9 Datasheet Preview — Preview of DMP2100UCB9 PDF

Datasheet Details

Part number:

DMP2100UCB9

Manufacturer:

DIODES ↗

File Size:

404.49 KB

Description:

P-Channel MOSFET

Features

* LD-MOS Technology with the Lowest Figure of Merit: RDS(on) = 80mΩ to Minimize On-State Losses Qg = 3.3nC for Ultra-Fast Switching
* Vgs(th) = -0.7V typ. for a Low Turn-On Potential
* CSP with Footprint 1.5mm × 1.5mm
* Height = 0.62mm for Low Profile
* ESD = 3kV HBM Protection o
