DMP210DUFB4 Datasheet - Diodes

P-Channel MOSFET

DMP210DUFB4 Features

* P-Channel MOSFET Low On-Resistance Very Low Gate Threshold Voltage VGS(TH) Low Input Capacitance Fast Switching Speed Ultra-Small Surfaced Mount Package Ultra-low package profile, 0.4mm maximum package height ESD Protected Gate Totally Lead-Free

DMP210DUFB4 General Description

This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. * * Mechanical Data * * * * * * Case: X2-DFN1006-3 Case Mate.

DMP210DUFB4 Datasheet (248.42 KB)

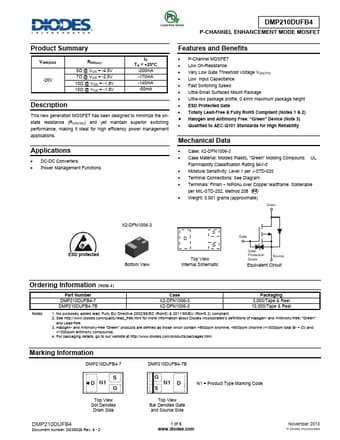

DMP210DUFB4 Datasheet Preview — Preview of DMP210DUFB4 PDF

Datasheet Details

Part number:

DMP210DUFB4

Manufacturer:

DIODES ↗

File Size:

248.42 KB

Description:

P-channel mosfet.
DMP210DUFB4 P-CHANNEL ENHANCEMENT MODE MOSFET Product Summary V(BR)DSS RDS(on) 5Ω @ VGS = -4.5V 7Ω @ VGS = -2.5V 10Ω @ VGS = -1.8V 15Ω @ VGS = -1.5V .
