DMT3006LDK - N-Channel MOSFET

Diodes

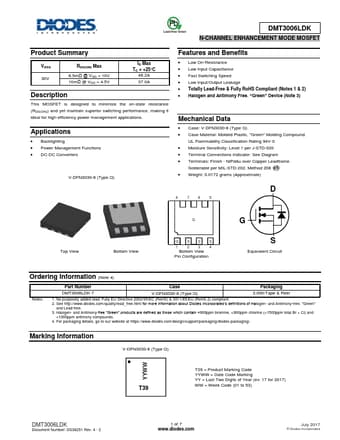

DMT3006LDK Datasheet Preview — Preview of DMT3006LDK PDF

Datasheet Details

Part number	DMT3006LDK
Manufacturer	DIODES ↗
File Size	335.39 KB
Description	N-Channel MOSFET
Datasheet	DMT3006LDK-Diodes.pdf

DMT3006LDK Product details

Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications. Backlighting Power Management Functions DC-DC Converters V-DFN3030-8 (Type Q)

Features

Low On-Resistance.
Low Input Capacitance.
Fast Switching Speed.
Low Input/Output Leakage.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3) Mechanical Data.
Case: V-DFN3030-8 (Type Q).
Case Material: Molded Plastic, "Green" Molding Compound. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020.
Terminal Connections Indicator: See Diagram.
Terminals:.
