DMT3006LFG, N-CHANNEL MOSFET

Product Summary BVDSS 30V RDS(ON) Max 6mΩ @ VGS = 10V 10mΩ @ VGS = 4.5V ID Max TC = +25°C 55.6A DMT3006LFG Green N-CHANNEL ENHANCEMENT MODE MOSFET.
and Applications Mechanical Data This MOSFET is designed to minimize the on-state resistance. (RDS(ON)), yet maintain superior switching perfor.

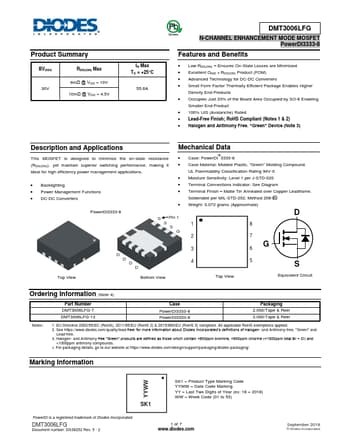

datasheet Preview Page 1 from Datasheet4u.com

DMT3006LFG-Diodes.pdf

DMT3006LFG Datasheet Preview — Preview of DMT3006LFG PDF

Datasheet Details

Part number:

DMT3006LFG

Manufacturer:

DIODES ↗

File Size:

401.34 KB

Description:

N-CHANNEL MOSFET

Features

* Low RDS(ON)
* Ensures On-State Losses are Minimized
* Excellent QGD ×RDS(ON) Product (FOM)
* Advanced Technology for DC-DC Converters
* Small Form Factor Thermally Efficient Package Enables Higher Density End Products
* Occupies Just 33% of the Board Area Occupied by SO

Applications

* Mechanical Data This MOSFET is designed to minimize the on-state resistance
* (RDS(ON)), yet maintain superior switching performance, making it
* ideal for high efficiency power management applications.
* Backlighting
* Power Management Functions
* DC-DC
