DPS1035

24V/3.5A 1-CH POWER SWITCH W/ REVERSE-VOLTAGE PROTECTION

DPS1035 Features

* Wide Operating Voltage Range: 4.5V to 24V

* 1-Channel Power Switch with Built-In Fault Detection and Recovery Mechanisms like Input Under-Voltage Lockout, Reverse-Voltage & Current Blocking, Thermal Shutdown and Input Over-Voltage Protection

* RDS(ON) of Embedded Power MOSFET at 30mΩ

DPS1035 General Description

The DPS1035 is part of a family of power switches optimized for the USB Type-CTM and other hot-swap applications. Through the analog interface, exception status is reported and functions like voltage limiting and output voltage ramp-up rate can be programmed. This device is designed to operate betwe.

DPS1035 Datasheet (672.34 KB)

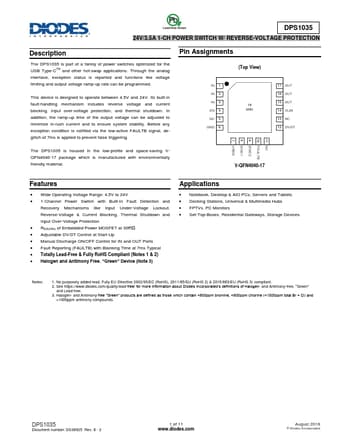

Preview of DPS1035 PDF

Datasheet Details

Part number:

DPS1035

Manufacturer:

DIODES ↗

File Size:

672.34 KB

Description:

24v/3.5a 1-ch power switch w/ reverse-voltage protection.
