DPS1133 - 24V/3A 1-CH POWER SWITCH

Datasheet Summary

Description

The DPS1133 is part of a family of power switches optimized for the USB Power Delivery and other hot-swap applications.

Through the analog interface, exception status is reported and several functions can be programmed: current limit, overvoltage protection, and output voltage ramping up.

Features

Wide Operating Voltage Range: 4.5V to 24V.
1-Channel Power Switch With Integrated Adjustable Current & Voltage Limits.
Ability to Discharge the Input and Output Ports either Individually or Simultaneously via Two External Control Pins.
Fast Short-Circuit Response Time at 2µs.
Comprehensive Built-in Fault Detection and Recovery Mechanisms like Input Undervoltage Lock-out, Reverse Voltage & Current Blocking, Thermal Shutdown, Overcurrent and ShortCircuit Protection.

Datasheet Details

Part number	DPS1133
Manufacturer	DIODES
File Size	0.96 MB
Description	24V/3A 1-CH POWER SWITCH
Datasheet	DPS1133 Datasheet

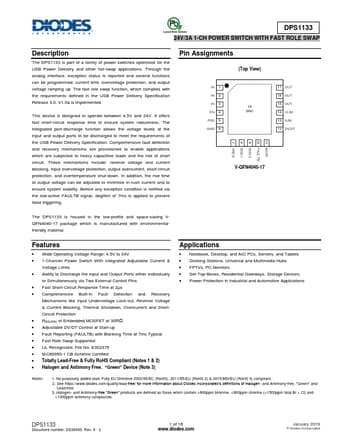

Additional preview pages of the DPS1133 datasheet.

📁 Similar Datasheet

DPS11-018-05 - DC/DC converters (DCDC)

DPS11-045-05 - DC/DC converters (DCDC)

DPS12-007-05 - DC/DC converters (DCDC)

DPS12-020-05 - DC/DC converters (DCDC)

DPS128C32BV3 - 512kx8 High Speed CMOS SRAM (Dense-Pac Microsystems)

DPS128M8 - 128kx8 High Speed CMOS SRAM (Dense-Pac Microsystems)

DPS128M8xxx - 128kx8 High Speed CMOS SRAM (Dense-Pac Microsystems)

DPS128X32BV3 - 128kx32 High Speed CMOS SRAM (Dense-Pac Microsystems)

DPS128X32CV3 - 128kx32 High Speed CMOS SRAM (Dense-Pac Microsystems)

DPS128X32XP - 4M CMOS SRAM (DPAC Technologies)

Full PDF Text Transcription

Click to expand full text

DPS1133 24V/3A 1-CH POWER SWITCH WITH FAST ROLE SWAP Description The DPS1133 is part of a family of power switches optimized for the USB Power Delivery and other hot-swap applications. Through the analog interface, exception status is reported and several functions can be programmed: current limit, overvoltage protection, and output voltage ramping up. The fast role swap function, which complies with the requirements defined in the USB Power Delivery Specification Release 3.0, V1.0a is implemented. This device is designed to operate between 4.5V and 24V. It offers fast short-circuit response time to ensure system robustness.
