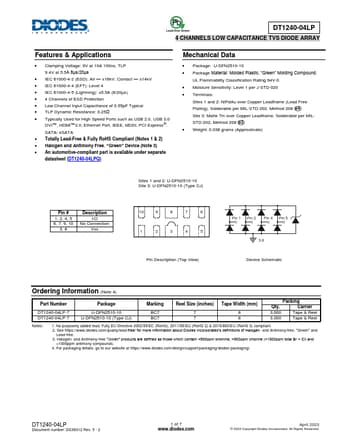

DT1240-04LP 4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY

I/O No Connection Vss 10 9 8 7 6 1 2 3 4 5 Pin Description (Top View) Pin 1 Pin 2 Pin 4 Pin 5 3,8 Device Schematic Ordering Information (Note 4) Part Number DT1240-04LP-7 DT1240-04LP-7 Package U-DFN2510-10 U-DFN2510-10 (Type CJ) Marking BC7 BC7 Reel Size (inches) 7 7 Tape Width (mm.

DT1240-04LP Features

* & Applications

* Clamping Voltage: 9V at 10A 100ns, TLP 9.4V at 5.5A 8μs/20μs

* IEC 61000-4-2 (ESD): Air

* ±16kV, Contact

* ±14kV

* IEC 61000-4-4 (EFT): Level 4

* IEC 61000-4-5 (Lightning): ±5.5A (8/20µs)

* 4 Channels of ESD Protection

* Low Channel Input Capa
