DT1240V3-04SO

4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY

DT1240V3-04SO Features

* Clamping Voltage: 8.8V at 10A 100ns, TLP 9V at 5.5A 8μs/20μs

* IEC 61000-4-2 (ESD): Air

* ±16kV, Contact

* ±14kV

* IEC 61000-4-5 (Lightning): ±5.5A (8/20µs)

* 4 Channels of ESD Protection

* Low Channel Input Capacitance of 0.55pF Typical

* TLP Dynamic Resist

DT1240V3-04SO General Description

The DT1240V3-04SO-7 is a high-performance device suitable for protecting four high speed I/Os. These devices are assembled in SOT26 packages and have high ESD surge capability and low capacitance. Applications Typically used at high-speed ports such as USB 2.0, IEEE1394 (Firewire®, iLink™), Serial .

DT1240V3-04SO Datasheet (558.56 KB)

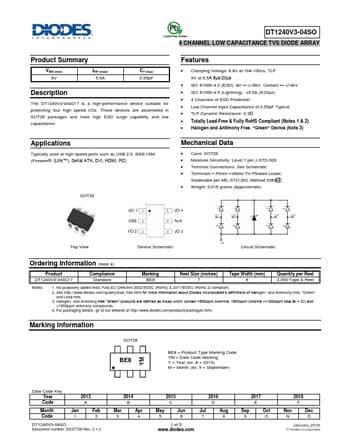

Preview of DT1240V3-04SO PDF

Datasheet Details

Part number:

DT1240V3-04SO

Manufacturer:

DIODES ↗

File Size:

558.56 KB

Description:

4 channel low capacitance tvs diode array.
