DT1042-04TS

4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY

DT1042-04TS Features

* Low Clamping Voltage, I/O to VSS Typical 9V at 10A 100ns, TLP Typical 7.7V at 6A 8μs/20μs

* IEC 61000-4-2 (ESD): Air

* +27/-19kV, Contact

* ±16kV

* IEC 61000-4-4 (EFT): Level-4

* 4 Channels of ESD Protection

* TLP Dynamic Resistance: 0.25Ω

DT1042-04TS General Description

This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The combination of low capacitance and high ESD surge capability makes it ideal for use in high speed ports such as USB 2.0, IEEE1394, HDMI, Laptop and Personal Computers, Flat Panel Displays, Video Grap.

DT1042-04TS Datasheet (326.26 KB)

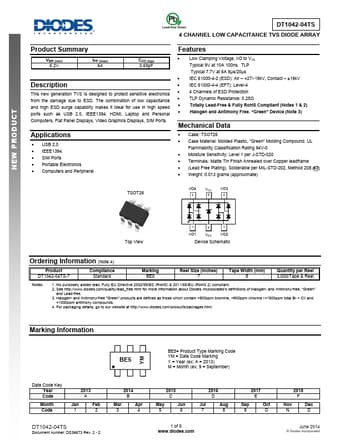

Preview of DT1042-04TS PDF

Datasheet Details

Part number:

DT1042-04TS

Manufacturer:

DIODES ↗

File Size:

326.26 KB

Description:

4 channel low capacitance tvs diode array.
NAEDWVPARNOCDEUICNTF O R M A T I O N DT1042-04TS 4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY Product Summary VBR (min) 6.2V IPP (max) 6A CI/O (typ).
