DT1240A-04LP Datasheet, Array, Diodes

DT1240A-04LP Features

  • Array
  • Clamping Voltage: 7.5V at 10A 100ns, TLP 8.2V at 5.5A (8μs/20μs)
  • IEC 61000-4-2 (ESD): Air
      – ±16kV, Contact
      – ±14kV
  • IEC 6100

PDF File Details

Part number:

DT1240A-04LP

Manufacturer:

DIODES ↗

File Size:

403.97kb

Download:

📄 Datasheet

Description:

4-channel low capacitance tvs diode array. The DT1240A-04LP is a high-performance device suitable for protecting four high-speed I/Os. These devices are assembled in U-DFN2510-

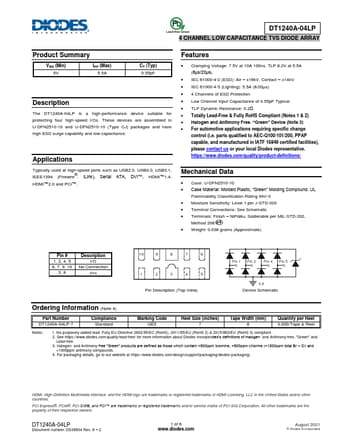

Datasheet Preview: DT1240A-04LP 📥 Download PDF (403.97kb)
Page 2 of DT1240A-04LP Page 3 of DT1240A-04LP

DT1240A-04LP Application

  • Applications Typically used at high-speed ports such as USB2.0, USB3.0, USB3.1, IEEE1394 (Firewire®, iLink), Serial ATA, DVI™, HDMI™1.4, HDMI™2.0 an
