DXT2010P5 - NPN MEDIUM POWER TRANSISTOR

Diodes

📥 Download Datasheet

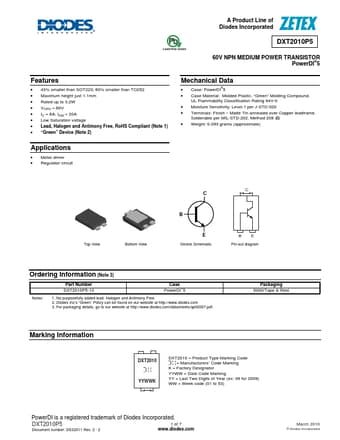

DXT2010P5 Datasheet Preview — Preview of DXT2010P5 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DXT2010P5
Manufacturer	DIODES ↗
File Size	190.76 KB
Description	NPN MEDIUM POWER TRANSISTOR
Datasheet	DXT2010P5-Diodes.pdf

DXT2010P5 Product details

Features

43% smaller than SOT223; 60% smaller than TO252.
Maximum height just 1.1mm.
Rated up to 3.2W.
VCEO = 60V.
IC = 6A; ICM = 20A.
Low Saturation voltage.
Lead, Halogen and Antimony Free, RoHS Compliant (Note 1).
“Green” Device (Note 2).
