DXT2011P5 Datasheet, Transistor, Diodes

DXT2011P5 Features

  • Transistor
  • BVCEO > 100V
  • IC = 6A High Continuous Collector Current
  • ICM = 10A Peak Collector Current
  • PD up to 3.2W
  • 43% smaller than SOT223; 60% smal

PDF File Details

Part number:

DXT2011P5

Manufacturer:

DIODES ↗

File Size:

184.05kb

Download:

📄 Datasheet

Description:

Npn medium power transistor.

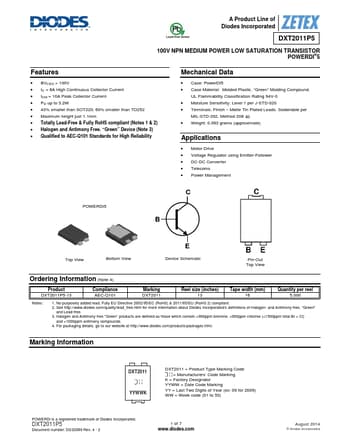

Datasheet Preview: DXT2011P5 📥 Download PDF (184.05kb)
Page 2 of DXT2011P5 Page 3 of DXT2011P5

DXT2011P5 Application

  • Applications
  • Motor Drive
  • Voltage Regulator using Emitter-Follower
  • DC-DC Converter
  • Telecoms
  • Power M
