FZT657, NPN MEDIUM POWER HIGH VOLTAGE TRANSISTOR

A Product Line of Green Diodes Incorporated FZT657 300V NPN MEDIUM POWER HIGH VOLTAGE TRANSISTOR IN SOT223 .

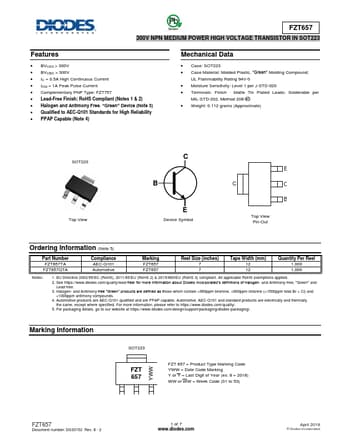

datasheet Preview Page 1 from Datasheet4u.com

FZT657-Diodes.pdf

FZT657 Datasheet Preview — Preview of FZT657 PDF

Datasheet Details

Part number:

FZT657

Manufacturer:

DIODES ↗

File Size:

623.39 KB

Description:

NPN MEDIUM POWER HIGH VOLTAGE TRANSISTOR

Features

* BVCEO > 300V
* BVCBO > 300V
* IC = 0.5A High Continuous Current
* ICM = 1A Peak Pulse Current
* Complementary PNP Type: FZT757
* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
* Qualified to AEC-Q101 Standards for

Applications

* the appropriate industry sector guidelines should be considered with regards to creepage and clearance distances between device terminals and PCB tracking. FZT657 Document number: DS33152 Rev. 5 - 2 6 of 7 www. diodes. com March 2015 © Diodes Incorporated A Product Line of Diodes Incorporated FZ
