FZT690B - NPN Silicon Planar Medium Power High Gain Transistor

Kexin

📥 Download Datasheet

FZT690B Datasheet Preview — Preview of FZT690B PDF

datasheet Preview Page 2

Datasheet Details

Part number: FZT690B
Manufacturer: Kexin
File Size: 33.89 KB
Datasheet: FZT690B-Kexin.pdf
Description: NPN Silicon Planar Medium Power High Gain Transistor

FZT690B Product details

Features

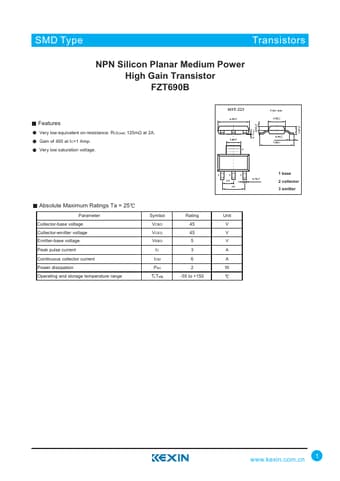

Very low equivalent on-resistance; RCE(sat) 125mÙ at 2A. Gain of 400 at IC=1 Amp. Very low saturation voltage. SOT-223 6.50+0.2 -0.2 3.00+0.1 -0.1 4 Unit: mm 3.50+0.2 -0.2 0.90+0.2 -0.2 7.00+0.3 -0.3 Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Peak pulse current Continuous collector current Power dissipation Operating and storage temperature range 123 2.9 4.6 0.70+0.1 -0.1 1 base 2 collector 3 emitter Symbol VCBO VCEO VE.
