FZT603 Datasheet, Transistor, Diodes

FZT603 Features

  • Transistor
  • BVCEO > 80V
  • BVCBO > 100V
  • IC = 2A High Continuous Current
  • Useful hFE up to 6A
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
  • H

PDF File Details

Part number:

FZT603

Manufacturer:

DIODES ↗

File Size:

670.33kb

Download:

📄 Datasheet

Description:

80v npn darlington transistor.

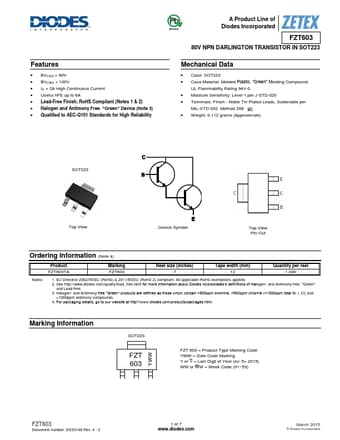

Datasheet Preview: FZT603 📥 Download PDF (670.33kb)
Page 2 of FZT603 Page 3 of FZT603
