FZT688B

NPN Silicon Planar Medium Power High Gain Transistor

FZT688B Features

* Extremely low equivalent on resistance; RCE(sat)83mÙ at 3A. Gain of 400 at IC=3 Amps and very low saturation voltage. SOT-223 6.50+0.2 -0.2 3.00+0.1 -0.1 4 Unit: mm 3.50+0.2 -0.2 0.90+0.2 -0.2 7.00+0.3 -0.3 Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltag

FZT688B Datasheet (33.80 KB)

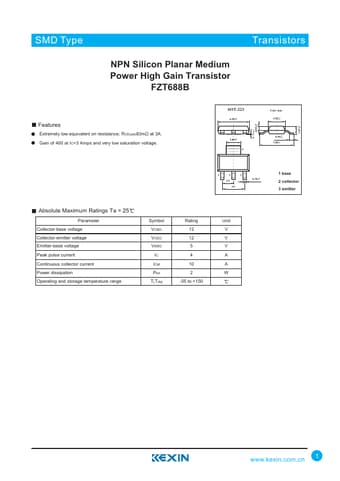

Preview of FZT688B PDF

Datasheet Details

Part number:

FZT688B

Manufacturer:

Kexin

File Size:

33.80 KB

Description:

Npn silicon planar medium power high gain transistor.
