Part number:
FZT689B
Manufacturer:
File Size:
630.11 KB
Description:

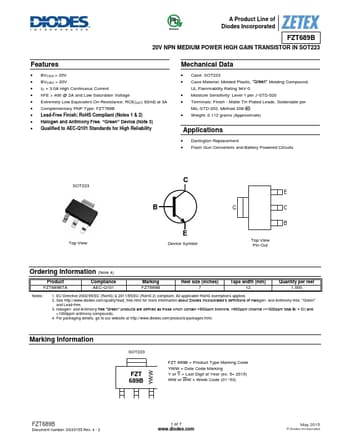

Npn medium power high gain transistor.
* BVCEO > 20V
* BVCBO > 20V
* IC = 3.0A High Continuous Current
* hFE > 400 @ 2A and Low Saturation Voltage
* Extremely Low Equivalent On-Resistance; RCE(SAT) 92mΩ at 3A
* Complementary PNP Type: FZT789B
* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
* Halogen and A
FZT689B
630.11 KB
Npn medium power high gain transistor.
