FZT605, 120V NPN DARLINGTON TRANSISTOR

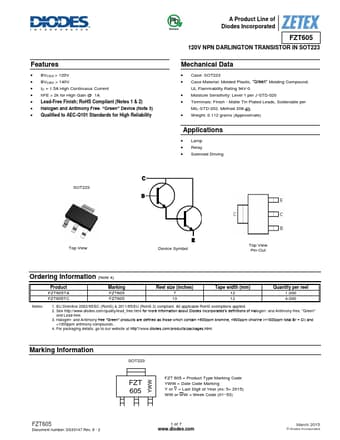

datasheet Preview Page 1 from Datasheet4u.com

FZT605-Diodes.pdf

FZT605 Datasheet Preview — Preview of FZT605 PDF

Datasheet Details

Part number:

FZT605

Manufacturer:

DIODES ↗

File Size:

650.76 KB

Description:

120V NPN DARLINGTON TRANSISTOR

Features

* BVCEO > 120V
* BVCBO > 140V
* IC = 1.5A High Continuous Current
* hFE > 2k for High Gain @ 1A
* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
* Qualified to AEC-Q101 Standards for High Reliability A Product Line of

Applications

* Lamp
* Relay
* Solenoid Driving SOT223 Top View Device Symbol Top View Pin-Out Ordering Information (Note 4) Product FZT605TA FZT605TC Marking FZT605 FZT605 Reel size (inches) 7 13 Tape width (mm) 12 12 Quantity per reel 1,000 4,000 Notes: 1. EU Directive 2002/95/EC (RoHS)
