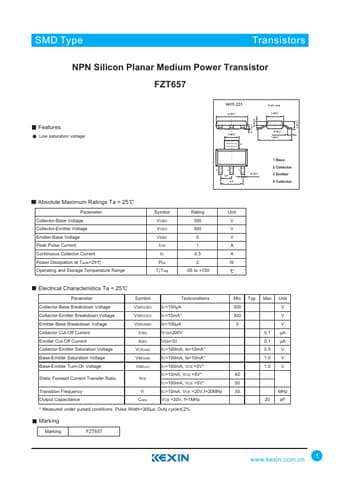

FZT657 Datasheet, Transistor, Kexin

FZT657 Features

• Transistor Low saturation voltage SOT-223 6.50+0.2 -0.2 Unit: mm 3.50+0.2 -0.2 3.00+0.1 -0.1 4 0.90+0.2 -0.2 7.00+0.3 -0.3 123 2.9 4.6 0.70+0.1 -0.1 1 Base 2 Collector 3 Emitter 4 Collector

PDF File Details

Part number:

FZT657

Manufacturer:

Kexin

File Size:

31.99kb

Download:

📄 Datasheet

Description:

Npn silicon planar medium power transistor.

TAGS

FZT657

Kexin
