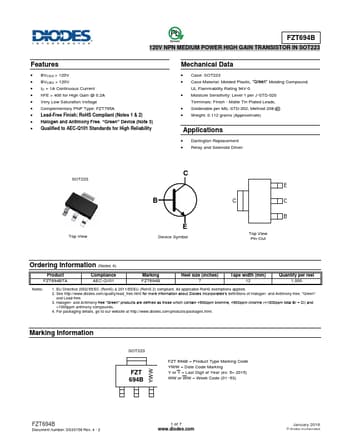

FZT694B Datasheet, Transistor, Diodes

FZT694B Features

• Transistor
• BVCEO > 120V
• BVCBO > 120V
• IC = 1A Continuous Current
• hFE > 400 for High Gain @ 0.2A
• Very Low Saturation Voltage
• Complementary

PDF File Details

Part number:

FZT694B

Manufacturer:

DIODES ↗

File Size:

745.94kb

Download:

📄 Datasheet

Description:

120v npn medium power transistor.

FZT694B Application

• Applications
• Darlington Replacement
• Relay and Solenoid Driver SOT223 Top View C B E Device Symbol C Top View Pin-Out E C B
