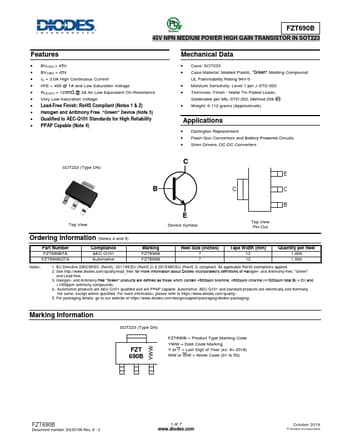

FZT690B Datasheet, Transistor, Diodes

FZT690B Features

• Transistor
• BVCEO > 45V
• BVCBO > 45V
• IC = 3.0A High Continuous Current
• hFE > 400 @ 1A and Low Saturation Voltage
• RCE(SAT) = 125mΩ @ 2A for Low Equiv

PDF File Details

Part number:

FZT690B

Manufacturer:

DIODES ↗

File Size:

632.28kb

Download:

📄 Datasheet

Description:

45v npn medium power transistor.

FZT690B Application

• Applications
• Darlington Replacement
• Flash-Gun Convertors and Battery-Powered Circuits
• Siren Drivers, DC-DC Converters
