PAM8303D Datasheet, Amplifier, Diodes

PAM8303D Features

  • Amplifier like 90% efficiency and small PCB area make the PAM8303D Class-D amplifier ideal for cellular handsets. The filterless architecture requires no external output filter, fewer external co

PDF File Details

Part number:

PAM8303D

Manufacturer:

DIODES ↗

File Size:

507.08kb

Download:

📄 Datasheet

Description:

3w filterless mono class-d audio power amplifier. The PAM8303D is a 3W mono filterless Class-D amplifier with high PSRR and differential input that eliminate noise and RF rectificatio

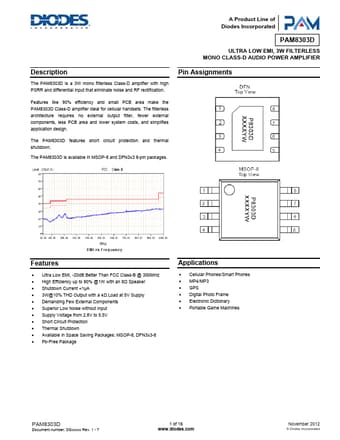

Datasheet Preview: PAM8303D 📥 Download PDF (507.08kb)
Page 2 of PAM8303D Page 3 of PAM8303D
