PAM8304 - 3W MONO CLASS-D AUDIO AMPLIFIER

PAM8304 Description

PAM8304 3W MONO CLASS-D AUDIO AMPLIFIER .
The PAM8304 is a mono, filter-less, Class-D amplifier with high SNR (signal-to-noise ratio) and differential input that helps eliminate noise.

PAM8304 Features

* short-circuit protection, thermal shutdown, and undervoltage lockout. The PAM8304 is available in the U-DFN3030-8 (Type E) and MSOP-8 packages. Pin Assignments U-DDFFNN3033X03-8-8(TLype E) ToTpoVp iVeiwew OUT+ 1 PVDD 2 VDD 3 IN- 4 P8304 X XXY W 8 OUT7 GND 6 SD 5 IN+ OUT+ 1 PVDD 2 VDD 3 IN- 4 P

PAM8304 Applications

* The PAM8304 is capable of driving speaker loads as low as 3Ω with a 5V supply, maximizing the output power. The device’s over 90% efficiency and small PCB area make the PAM8304 Class-D amplifier ideal for portable applications. The output uses a filter-less architecture, minimizing the number of ex

📥 Download Datasheet

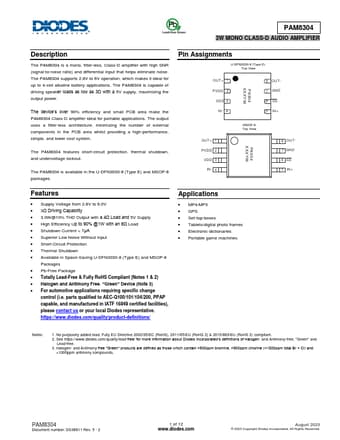

Preview of PAM8304 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PAM8304
Manufacturer
DIODES ↗
File Size
922.60 KB
Datasheet
PAM8304-Diodes.pdf
Description
3W MONO CLASS-D AUDIO AMPLIFIER
