PI3EQX10612 Datasheet - Diodes

PI3EQX10612 USB 3.1 Mux/Demux ReDriver

PI3EQX10612 is a low-power, high-performance 10Gbps 2Port USB 3.1 Gen-2/Gen-1 Mux/DeMux ReDriver. The Two-Port Mux/Demux ReDriver The ReDriver provides programmable equalization, swing, and flat gain to optimize performance over a variety of physical mediums by reducing intersymbol interference. The.

PI3EQX10612 Features

* ReDriver  10Gbps Serial Link with Linear Equalizer  Full Compliancy to USB 3.1 Gen-2 and Gen-1 Super-Speed Standard  1-to-2 DeMux from Host Tx to Device Rx  2-to-1 Mux from Device Tx to Host Rx  Adjustable-Output Linear Swing, Flat Gain and Equalization via I2C or Pin Control  100Ω Differentia

PI3EQX10612-Diodes.pdf

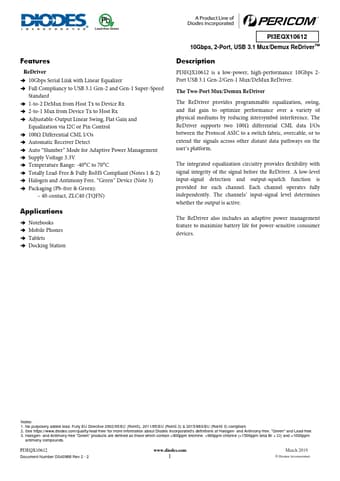

Preview of PI3EQX10612 PDF
PI3EQX10612 Datasheet Preview Page 2 PI3EQX10612 Datasheet Preview Page 3

Datasheet Details

Part number:

PI3EQX10612

Manufacturer:

DIODES ↗

File Size:

692.65 KB

Description:

Usb 3.1 mux/demux redriver.
