PI3EQXDP1201 - 3.3V 4-Ch DisplayPort 1.2 Redriver

Product Overview

Pericom Semiconductor

Datasheet Details

Part number	PI3EQXDP1201
Manufacturer	Pericom Semiconductor
File Size	1.52 MB
Description	3.3V 4-Ch DisplayPort 1.2 Redriver
Datasheet	PI3EQXDP1201 Datasheet

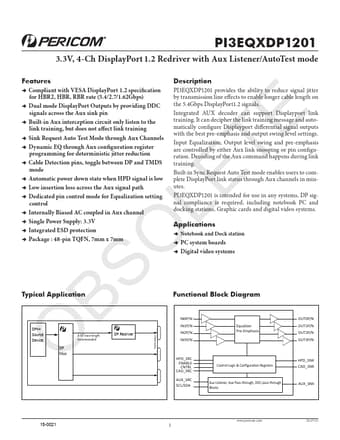

Additional preview pages of the PI3EQXDP1201 datasheet.

Product details

Description

PI3EQXDP1201 provides the ability to reduce signal jitter by transmission line effects to enable longer cable length on the 5.4Gbps DisplayPort1.2 signals.

Features

ÎÎCompliant with VESA DisplayPort 1.2 specification for HBR2, HBR, RBR rate (5.4/2.7/1.62Gbps) ÎÎDual mode DisplayPort Outputs by providing DDC signals across the Aux sink pin ÎÎBuilt-in Aux interception circuit only listen to the link training, but does not affect link training ÎÎSink Request Auto Test Mode through Aux Channels ÎÎDynamic EQ through Aux configuration register programming for deterministic jitter reduction ÎÎCable Detection pins, toggle between DP and TMDS mode ÎÎAutomatic power.
