PI3EQX1204-C

12.5Gbps 4-channel SAS3 ReDriver

PI3EQX1204-C Features

* ÎÎ1-12.5Gbps serial link with linear equalizer ÎÎSupport SATA Gen1/Gen2/Gen3, SAS2/3, and XAUI protocol ÎÎSupporting 4 differential channels ÎÎHandle up to 34dB channel loss (42" FR4 trace or 10 meters or SAS3 cable) ÎÎIndependent channel configuration of receiver equalization, output swing and flat

PI3EQX1204-C General Description

The PI3EQX1204-C is a SAS3, 4 differential channels ReDriver. The device provides programmable linear equalization, output swing and flat gain, by either pin strapping option or I2C Control, to optimize performance over a variety of physical mediums by reducing Inter-symbol interference. PI3EQX1204-.

PI3EQX1204-C Datasheet (920.79 KB)

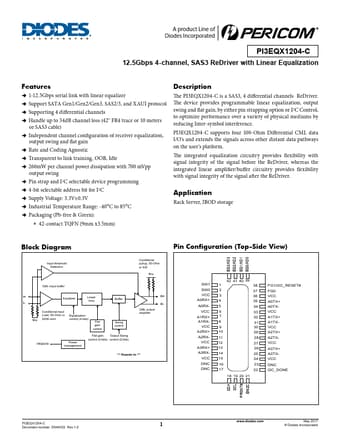

Preview of PI3EQX1204-C PDF

Datasheet Details

Part number:

PI3EQX1204-C

Manufacturer:

DIODES ↗

File Size:

920.79 KB

Description:

12.5gbps 4-channel sas3 redriver.
