PI3EQX3851B

1-port SATA2/SAS ReDriver

PI3EQX3851B Features

* SATA2 i, m; external SATA2 Two 3.0Gbps differential signal pairs Adjustable Receiver Equalization 100-Ohm Differential CML I/O’s Independent Analog output swing adjustment Independ

PI3EQX3851B General Description

Pericom Semiconductor’s PI3EQX3851B is a low power, signal ReDriver. The device provides programmable equalization, to optimize performance over a variety of physical mediums by reducing Inter-Symbol Interference. PI3EQX3851B supports two 100-Ohm Differential CML data I/O’s between the Protocol ASIC.

PI3EQX3851B Datasheet (748.01 KB)

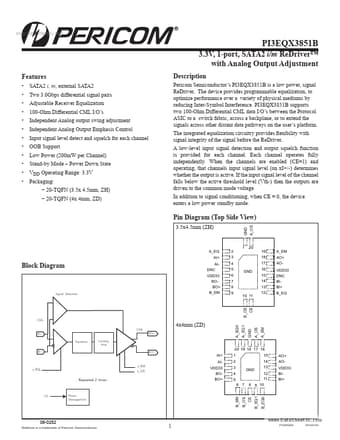

Preview of PI3EQX3851B PDF

Datasheet Details

Part number:

PI3EQX3851B

Manufacturer:

Pericom Semiconductor Corporation

File Size:

748.01 KB

Description:

1-port sata2/sas redriver.
