PI3A125 Datasheet, Switch, Pericom Semiconductor Corporation

PI3A125 Features

• Switch
• Low Voltage, SPST Switch
    – VCC from 2.3V to 3.6V
• Low On-Resistance: 6 ohms at 3.0V
• CMOS Technology for Bus and Analog Applications

PDF File Details

Part number:

PI3A125

Manufacturer:

Pericom Semiconductor Corporation

File Size:

193.38kb

Download:

📄 Datasheet

Description:

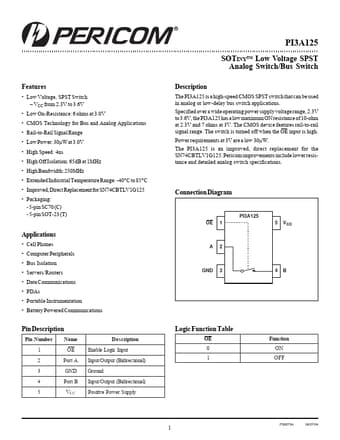

Sotiny low voltage spst analog switch/bus switch. The PI3A125 is a high-speed CMOS SPST switch that can be used in analog or low-delay bus switch applications. Specified over a wide o

PI3A125 Application

• Applications
• Rail-to-Rail Signal Range
• Low Power: 30µW at 3.0V
• High Speed: 4ns
• High Off Isolation: 65dB at 1
