PI3A27518 Datasheet - DIODES

PI3A27518 - 2:1 Mux/DeMux

The PI3A27518 is a 6-channel, 1:2 multiplexer/demultiplexer.

The COMx port can be configured to connect with NOx or NCx ports in 4 different modes (refer to Truth Table for details).

The PI3A27518 has a wide operating voltage range, very low power consumption and small packaging.

The device can be u

PI3A27518 Features

*  CMOS Technology for bus and analog applications  Low propagation delay  Low typical On-Resistance: 5Ω  Signal passing bandwidth, 380 MHz  Wide VDD range: 1.65V to 3.6V  Rail-to-Rail signal range  High Off Isolation: -66dB @ 10MHz  Crosstalk Rejection reduces signal distortion: -60dB @ 10MHz

PI3A27518-DIODES.pdf

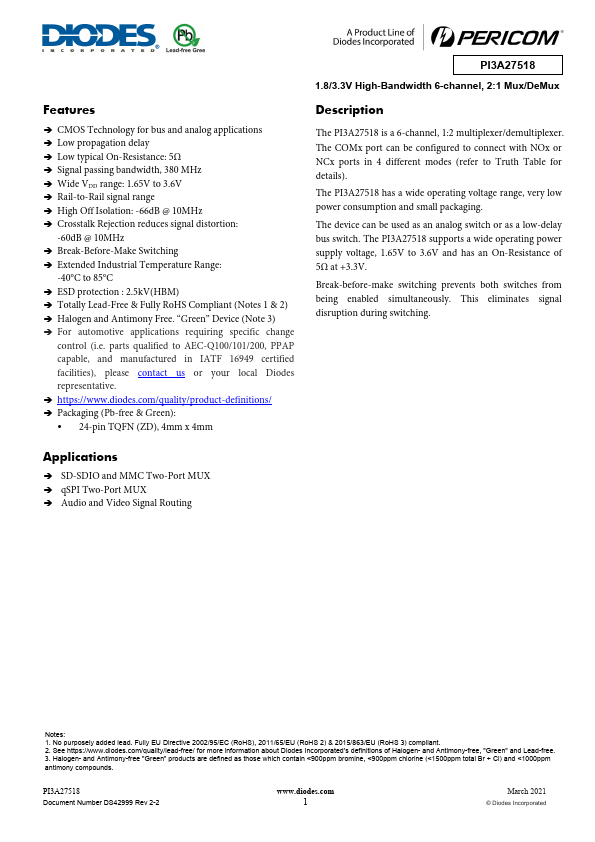

Preview of PI3A27518 PDF

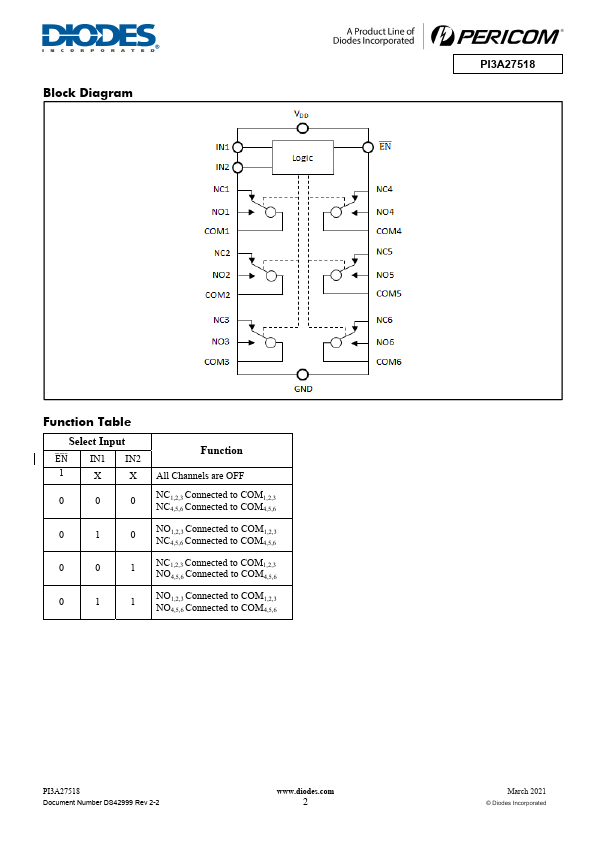

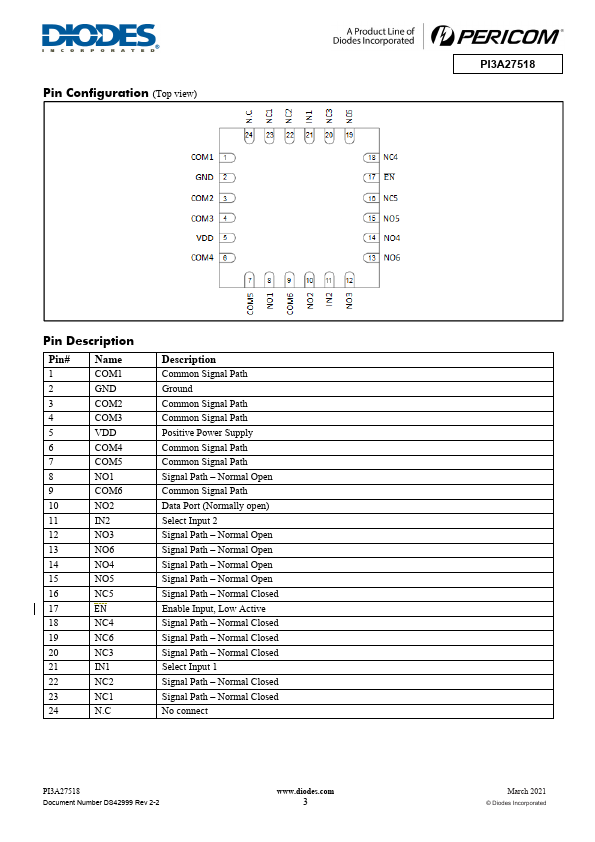

PI3A27518 Datasheet Preview Page 2 PI3A27518 Datasheet Preview Page 3

Datasheet Details

Part number:

PI3A27518

Manufacturer:

DIODES ↗

File Size:

742.48 KB

Description:

2:1 mux/demux.
