PI3A268C Datasheet - DIODES

PI3A268C Dual SPDT Analog Switch

The DIODES™ PI3A268C is a dual, fast single-pole double throw (SPDT) CMOS switch. It can be used as an analog switch or as a low-delay bus switch. Break-before-make switching prevents both switches being enabled simultaneously. This eliminates signal disruption during switching. With the use of 3rd .

PI3A268C Features

* y CMOS Technology for Bus and Analog Applications y Low On-Resistance: 0.6Ω. y Wide VDD Range: 2.5V to 4.2V y High Off Isolation: -80dB @ 100kHz y Crosstalk Rejection Reduces Signal Distortion: 72dB @ 100kHz y Input signals can be from -1.5V up to VDD without distortion y Break-Before-Make Switching

PI3A268C Datasheet (856.09 KB)

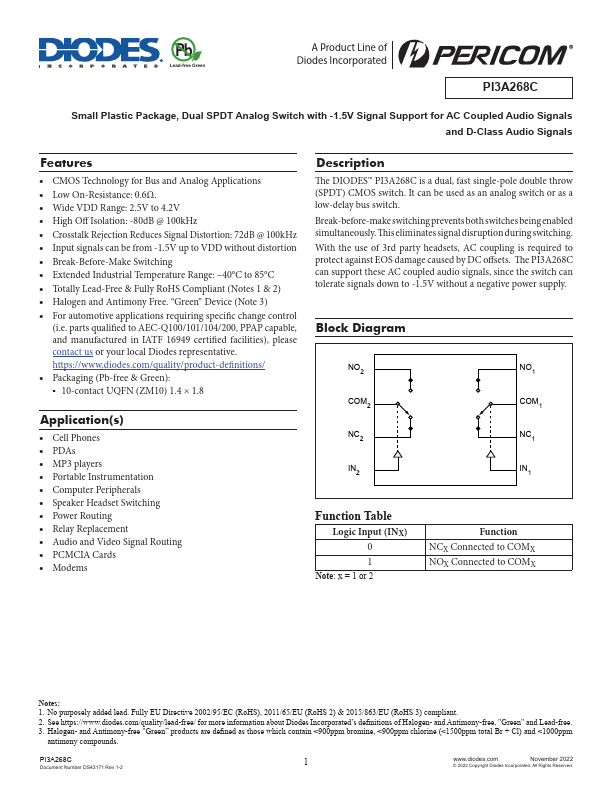

Preview of PI3A268C PDF

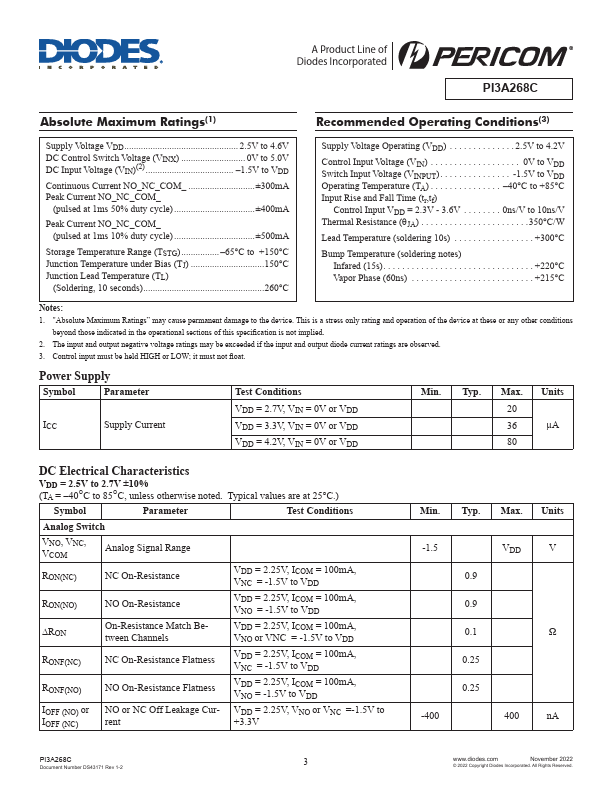

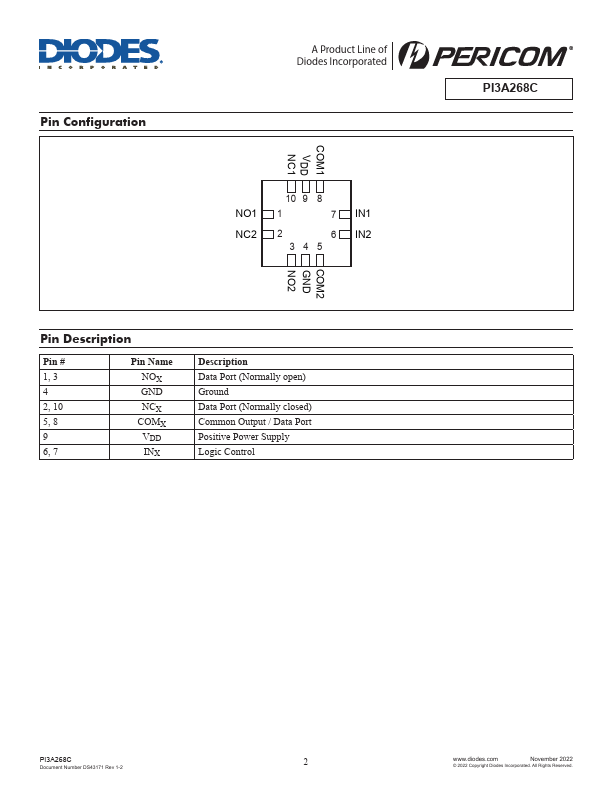

PI3A268C Datasheet Preview Page 2 PI3A268C Datasheet Preview Page 3

Datasheet Details

Part number:

PI3A268C

Manufacturer:

DIODES ↗

File Size:

856.09 KB

Description:

Dual spdt analog switch.
