PI3A288 - Ultra-Low-THD Dual-SPDT Analog Switch

Product Overview

📥 Download Datasheet

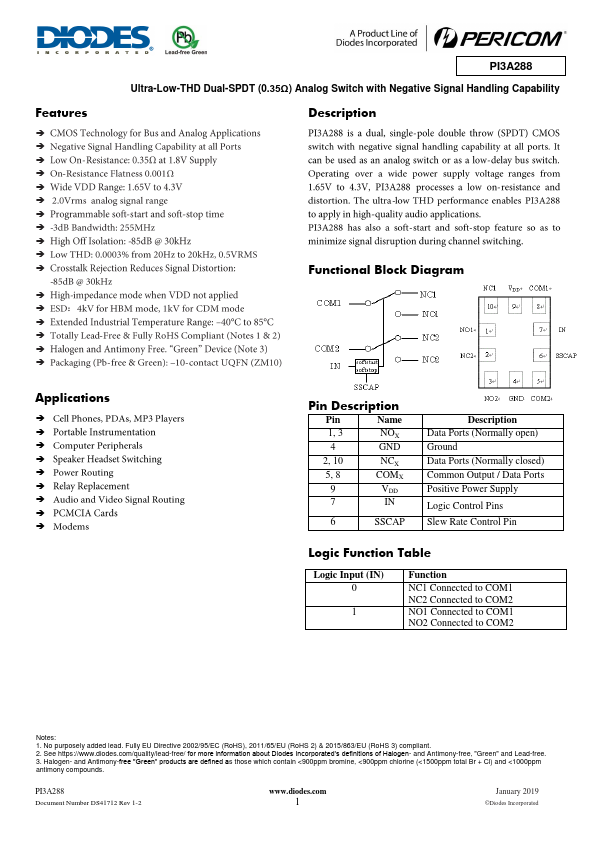

Datasheet preview – PI3A288

Datasheet Details

Part number PI3A288
Manufacturer DIODES
File Size 955.29 KB
Description Ultra-Low-THD Dual-SPDT Analog Switch
Datasheet download datasheet PI3A288 Datasheet

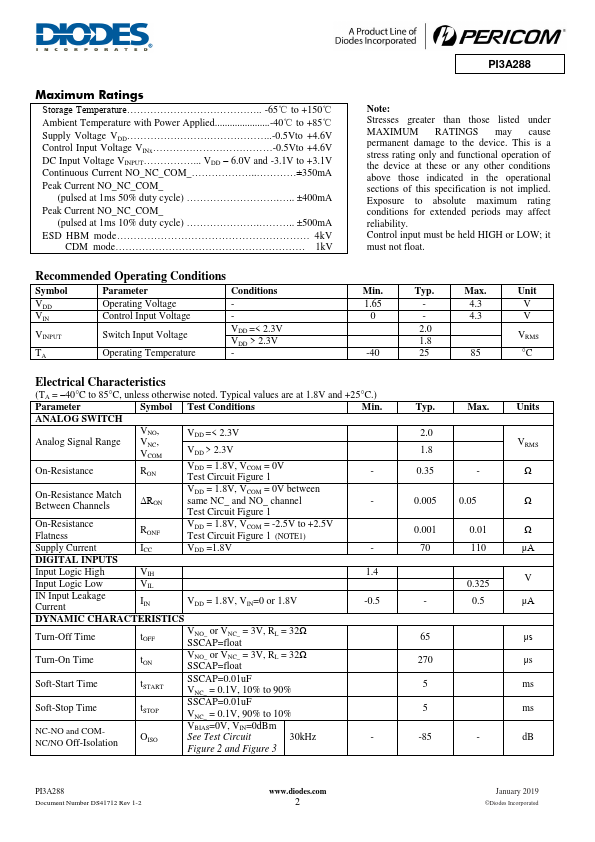

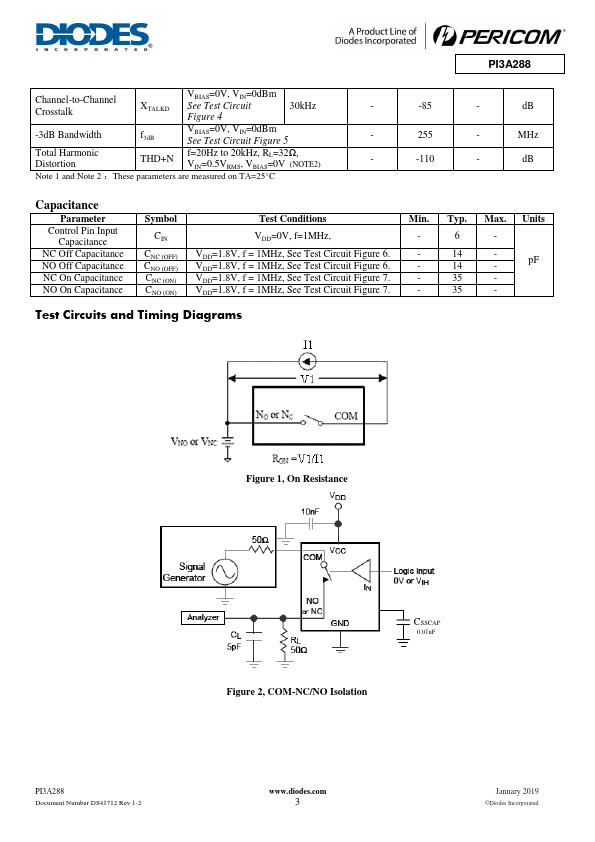

Additional preview pages of the PI3A288 datasheet.

Product details

Description

Functional Block Diagram Applications          Pin Description Pin Name 1, 3 NOX 4 GND 2, 10 5, 8 NCX COMX 9 VDD 7 IN 6 SSCAP Description Data Ports (Normally open) Ground Data Ports (Normally closed) Common Output / Data Ports Positive Power Supply Logic Control Pins Slew Rate Control Pin Logic Function Table Logic Input (IN) 0 1 Function NC1 Connected to COM1 NC2 Connected to COM2 NO1 Connected to COM1 NO2 Connected to COM2 Logic Function Table Notes: 1. No purpo

Features
